Pasteurization Machine Beer Flash Pasteurizer

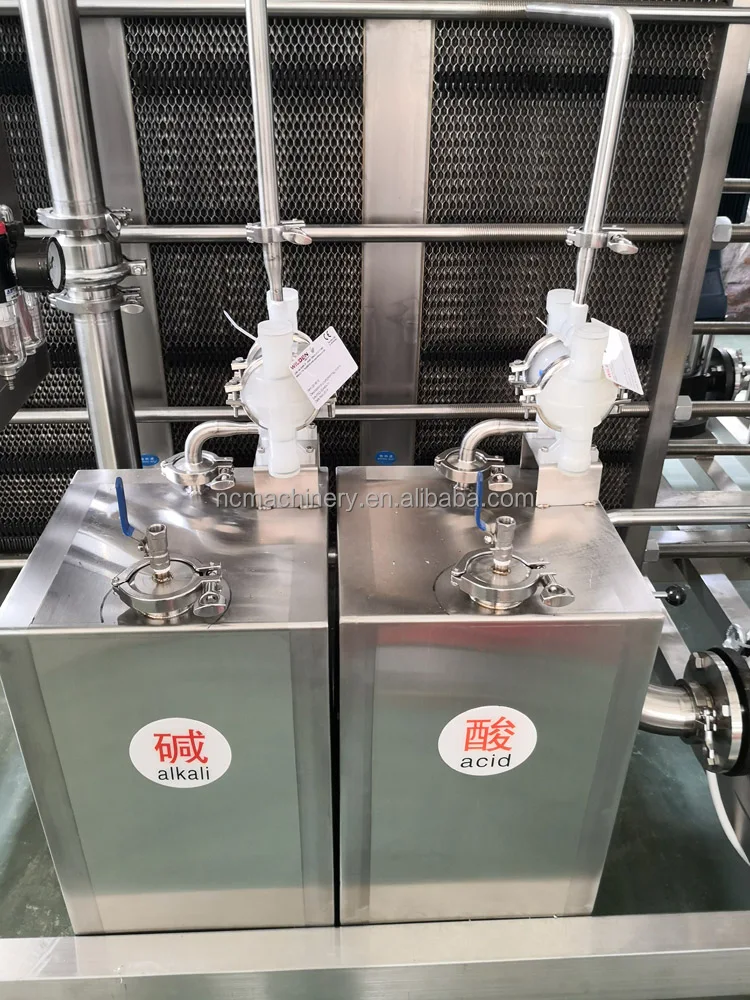

Plate type pasteurizer is PLC controlled,with optional capacity from 1t/hr to 15t/hr.The system work in aseptic section and normal section, for the technical require-ments of filling at low temperature,normal temperature and high temperature. The seven-section heat exchanger ensures minimum consumptionof energy,and per-fect design of CIP and SIP satisfies the demand of cleaning and sterilization.Ultra-high temperature water is employed as the media for the heating of materials and temperature adjustment of filling exit,featuring high accuracy.
| Working condition |
| Material(Beer) Capacity | 12000L/H | Inlet temperature | 5℃ | Steam pressure | 0.5~0.6MPa |
| Design Requirement |
| Material Sterilizing temperature | 80℃(adjustable) | Holding time | 30 sec | Outlet Temperature | 4℃ |
| Equipment main technical parameter |
| Item name | Technical parameter |
| Equipment Model | BR26-PUT-60B(3 stage) | Electrical power | 11.6KW |
| Heat exchange area | 60M2 | Material Inlet& Outlet Diameter | 63 |
| Material | 304 | Cold water Inlet& Outlet Diameter | 76 |
| Plate sheet size | 1350×450×0.6 | Cold water flow rate | 12t/h |
| Pasteurizing temp. | Fully automatic control | Steam pipe diameter | DN60×3 |
| Accurancy | ±1℃ | Steam consumption | 480Kg/h |
| reflux valve work condition | Alarm when high temperature, reflux when low temperature(automatically) | Compressed air pressure | >0.6Mpa |
| Maximum pressure | 0.5MPa | Compressed air consumption | 0.06M3/min |
| Weight | 3.2T | Equipment Size | 2900(L)×2000(W)×2200(H) |
1.Provide for equipment inspection certificate and manual, to ensure that users properly install and use.
2.Equipment to reach the destination, the company will send engineers to guide installation and commissioning and customer training until satisfied.
3. The warranty period will be free to customers wearing accessories, after one year warranty period, our company to provide parts at cost.
4.we provide lifelong maintenance service, including if necessary, to send engineers to the customer at the service.
Shanghai Nancheng Machinery Co., Ltd. is a professional manufacturer dedicated to research, development, manufacture and sale of all kinds of beverage and foodstuff machinery.
Having the rich experience of more than 20 years in foodstuff & beverage machinery field, we can help customers design, manufacture, install and operate the turn-key project for mineral water, pure water, carbonated drink, fruit juice, milk, yogurt, cheese and ice cream production lines etc.
Our main products include water treatment systems, bottle blowing machine, RO systems,3-in-1 mono block filling machine, coil, plate, tubular UHT sterilizers, homogenizer, ink jet printer, liquid packing machine, shrink labeling machine, all kinds of tanks, ice cream machine,popcorn machine,bakery machine, foodstuff machine, etc.
With the good reputation and fame among the loyal customer, our products have been sold and distributed to over thirty provinces and cities in China, exported to more than 85 countries and areas throughout the world. Upholding the idea of providing customer with "Innovative solution, Reliable Quality and Responsible Service", we aim to offer more reliable and flexible machines that are easily adaptable to market developments and future technology.
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
